All-steel Antistatic Ventilated Floor

All-steel Antistatic Ventilated Floor

All-steel Antistatic Ventilated Floor

Product features
Transportation and installation

Features

  • ?It is structure is similar to that of all-steel anti-static raised floor panel,but no foamed cement.The ventilation system is formed by round vent hole.Ventilation panel is used for under floor air conditioning,matching with all-steel raised floor panel.The ventilation rate of the panel is 20.8%-43.8%.

Applications

  • ?It is applied to various kinds of places where requirements on ventilation such as computer rooms,communication room,switch room and the place demand cabling and wiring.

  • ?Varieties:6.5 type ventilation plate,the adjustable ven tilated plate,9 type ventilation plate,16 type ventilation plate,22 type ventilation plate,Ovaloid ventilation plate,Purification workshop steel airflow floor.

Paremeters


Type

Size

Concentrated load


Uniform load??N/?O??


Ultimate load??N??

LB

N

Kg

6010

600x600x30

??440

??1960

??200

??9720

??5880

6011

600x600x35

??700

??3115

??318

??12500

??8850

6012

600x600x35

??800

??3560

??363

??17000

??10700

6013

600x600x35

??1000

??4450

??454

??23000

??13350

6014

600x600x35

??1250

??5563

??568

??33000

??16680

6015

600x600x35

??1500

??6674

??681

??43000

??20000

6016

600x600x35

??2000

??8900

??909

??63000

??26700

6017

600x600x35

??700

??3115

??318

??12500

??8850

6018

600x600x35

??800

??3560

??363

??17000

??10700

6019

600x600x35

??1000

??4450

??454

??23000

??13350

6020

600x600x35

??1250

??5563

??568

??33000

??16680

6021

600x600x35

??1500

??6674

??681

??43000

??20000

6022

600x600x35

??1750

??7785

??795

??52000

??23300

6023

600x600x35

??2000

??8900

??909

??63000

??26700


Representative Project


Bijie Police Bureau Machine Room


  • ?Product:COSNEW All-steel Anti-static Adjustable Floor(6010)

  • ?Application:Floor Decoration of Machine Room

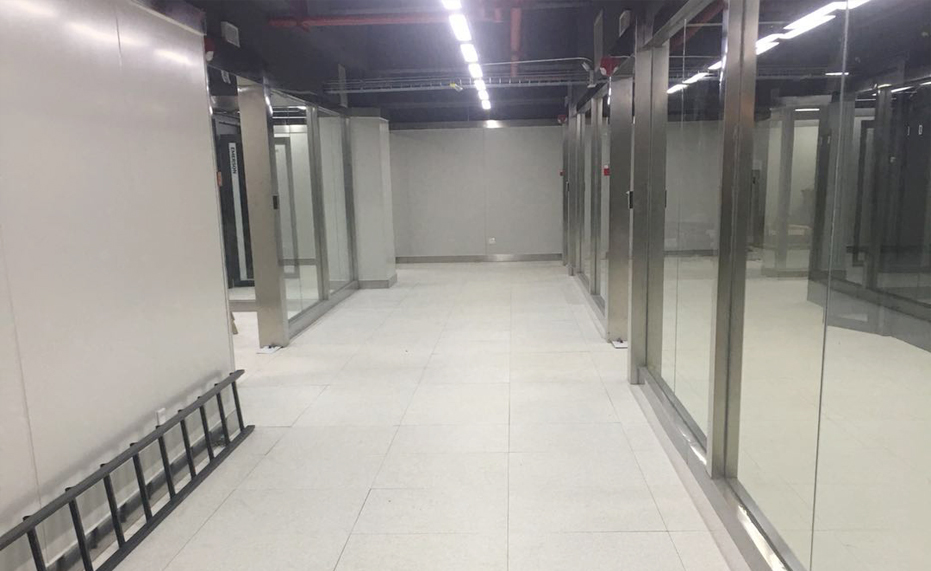

Image of COSNEW floor (Installation Completed)



Image of COSNEW floor (Installation Completed)



Image of COSNEW floor (Installation Completed)
